Overview
The Present day display is designed to display real-time scheduling information.
To view the hardware requirements for Operational displays,
please review our KBA here.
To configure a Present day Operational Display, please follow the steps below:

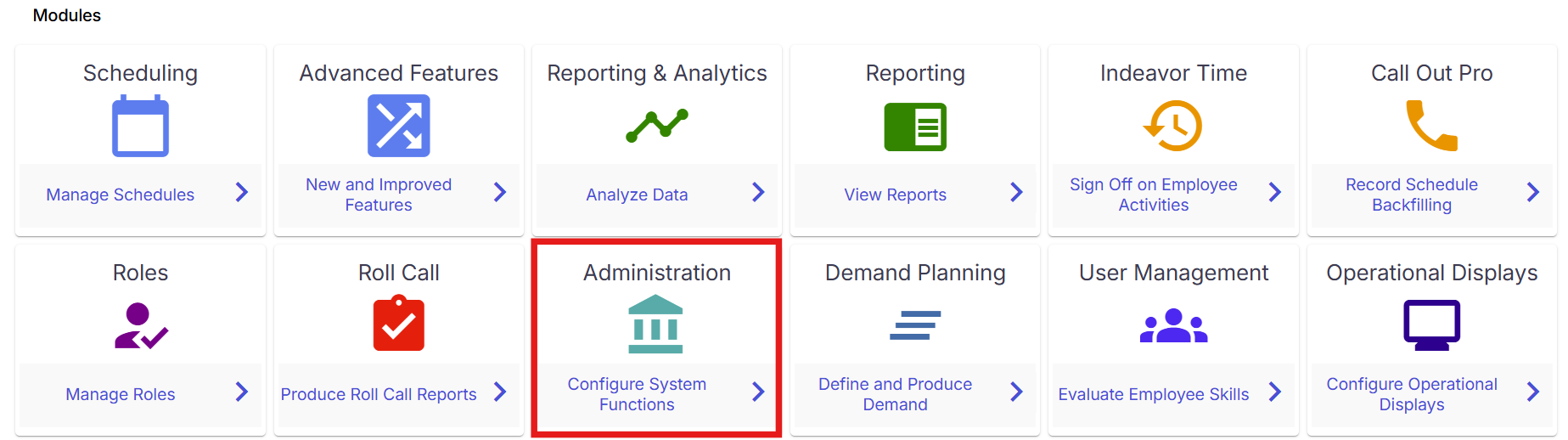

1.) Navigate to the Administration Application, select Settings, select Operational Displays.
2.) On the Operational Display page, click on the New Operational Display button.

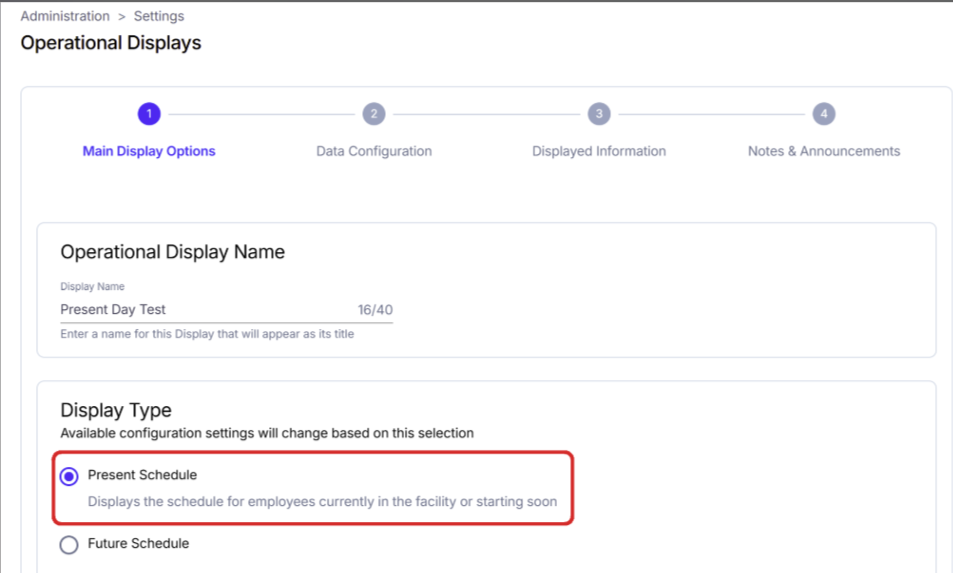

3.) From the next page you can enter the display name and select "Present Schedule" as the Display Type:

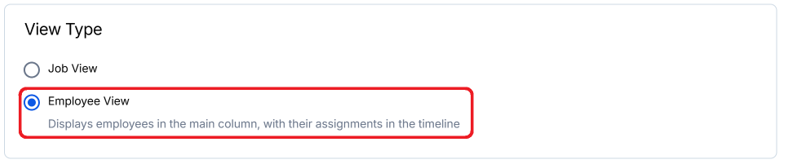

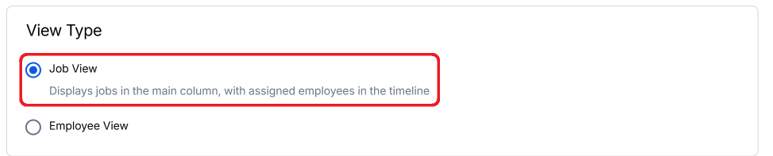

4.) You can then select if you would like this to display schedules per job or per employee. You can select either Job View or Employee view in the View Type field:

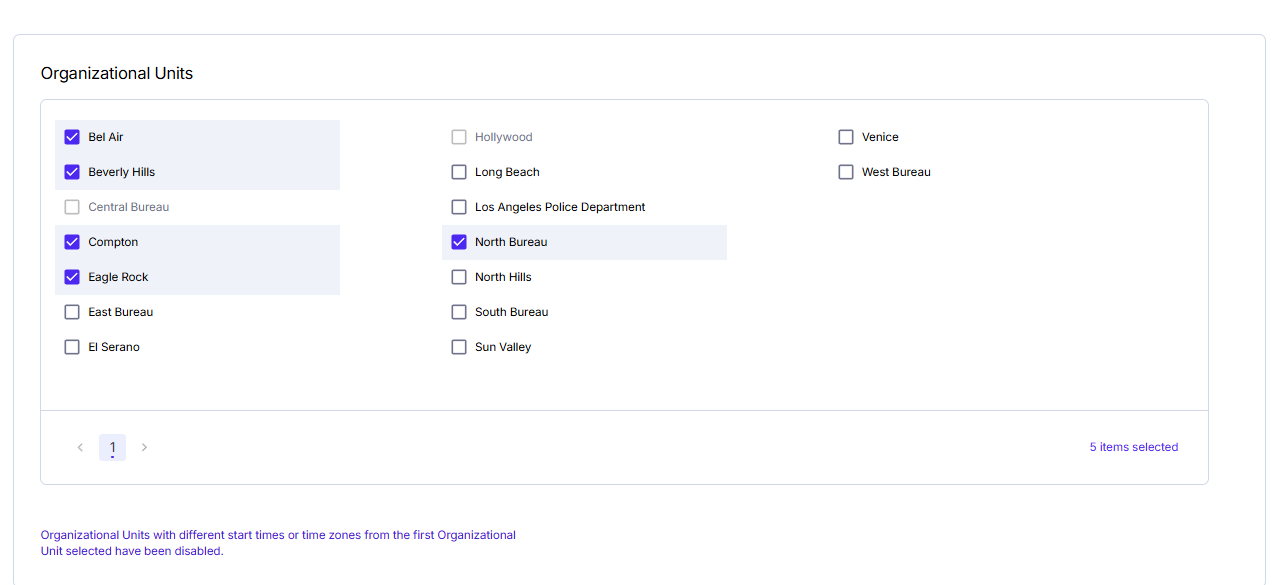

4.) In the Data Configuration tab, select up to 20 Organizational Units and how the data will be grouped.
5.) In the Information Displayed tab, select whether Job Name (Job Name Initials or Job Names) should appear, if times should be displayed in 12h or 24h format and the language that you would like the displayed language to be.
6.) In the Notes & Announcements tab, add any notes to the Left or Right bottom side of the screen in the corresponding sections. Toggle the “Broadcast Message” switch on or off to broadcast the message, and select whether it will be broadcasted for a specific period or indefinitely.
7.) After clicking on the Save button, a pop-up window will appear with the generated Presentation Link.
8.) Enter this link to your TV or computer’s internet browser.
9.) At the Login Screen, enter the credentials of a user with the Viewer role that will only be used for accessing this display. For more information on creating a display user, please review our KBA here.
Note: If an Operational Display is deleted, it cannot be restored.
